Тройник ТУ 1469-002-42039714-2004

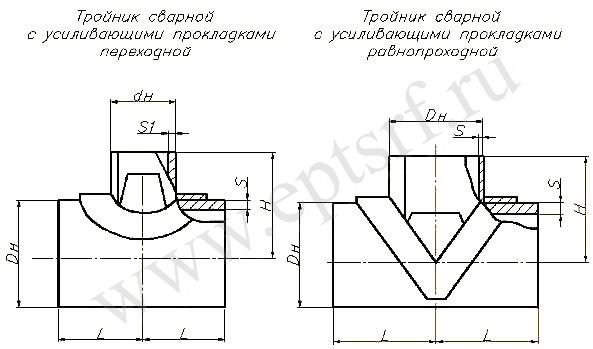

Тройники сварные с усиливающими накладками ТУ 1469-002-42039714-2004 с диаметром магистрали от 530 до 1420мм и диаметром ответвления от 219 до 1420мм, с рабочим давлением до 12,5 МПа, предназначенные для магистральных и промысловых трубопроводов, а также других объектов нефтяной и газовой промышленности, транспортирующих неагрессивные нефть, нефтепродукты и газ. Изготавливаются в двух исполнениях: УХЛ – для макроклиматических районов с умеренным и холодным климатом, У – для макроклиматических районов с умеренным климатом с коэффициентами условий работы штампосварных деталей m=0,6; 0,75, из сталей следующих классов прочности: К42, К46, К48, К50, К52, К54, К56, К60.
Минимальные номинальные значения толщин стенок, ст.09Г2С ГП-К48
| Dн | dн | 1,6МПа | 2,5МПа | 4МПа | L | H | |||||||||
| m=0,6 | m=0,75 | m=0,6 | m=0,75 | m=0,6 | m=0,75 | ||||||||||
| мм | мм | S | S1 | S | S1 | S | S1 | S | S1 | S | S1 | S | S1 | мм | мм |
| 530 | 219 | 8,0 | 6,0 | 8,0 | 6,0 | 8,0 | 6,0 | 8,0 | 6,0 | 8,0 | 6,0 | 8,0 | 6,0 | 310 | 450 |
| 530 | 273 | 8,0 | 6,0 | 8,0 | 6,0 | 8,0 | 6,0 | 8,0 | 6,0 | 8,0 | 6,0 | 8,0 | 6,0 | 360 | 455 |
| 530 | 325 | 8,0 | 6,0 | 8,0 | 6,0 | 8,0 | 6,0 | 8,0 | 6,0 | 8,0 | 6,0 | 8,0 | 6,0 | 405 | 460 |
| 530 | 377 | 8,0 | 6,0 | 8,0 | 6,0 | 8,0 | 6,0 | 8,0 | 6,0 | 8,0 | 6,0 | 8,0 | 6,0 | 450 | 460 |
| 530 | 426 | 8,0 | 6,0 | 8,0 | 6,0 | 8,0 | 6,0 | 8,0 | 6,0 | 8,0 | 6,0 | 8,0 | 6,0 | 500 | 460 |
| 530 | 530 | 8,0 | 8,0 | 8,0 | 8,0 | 8,0 | 8,0 | 585 | 465 | ||||||
| 630 | 219 | 8,0 | 6,0 | 8,0 | 6,0 | 8,0 | 6,0 | 8,0 | 6,0 | 8,0 | 6,0 | 8,0 | 6,0 | 310 | 490 |
| 630 | 325 | 8,0 | 6,0 | 8,0 | 6,0 | 8,0 | 6,0 | 8,0 | 6,0 | 8,0 | 6,0 | 8,0 | 6,0 | 405 | 515 |
| 630 | 426 | 8,0 | 6,0 | 8,0 | 6,0 | 8,0 | 6,0 | 8,0 | 6,0 | 8,0 | 6,0 | 8,0 | 6,0 | 500 | 530 |
| 630 | 530 | 8,0 | 6,0 | 8,0 | 6,0 | 8,0 | 6,0 | 8,0 | 6,0 | 9,0 | 8,0 | 8,0 | 6,0 | 585 | 530 |
| 630 | 630 | 8,0 | 8,0 | 8,0 | 8,0 | 10,0 | 8,0 | 675 | 530 | ||||||
| 720 | 273 | 10,0 | 6,0 | 10,0 | 6,0 | 10,0 | 6,0 | 10,0 | 6,0 | 10,0 | 6,0 | 10,0 | 6,0 | 360 | 560 |
| 720 | 325 | 10,0 | 6,0 | 10,0 | 6,0 | 10,0 | 6,0 | 10,0 | 6,0 | 10,0 | 6,0 | 10,0 | 6,0 | 405 | 560 |
| 720 | 377 | 10,0 | 6,0 | 10,0 | 6,0 | 10,0 | 6,0 | 10,0 | 6,0 | 10,0 | 6,0 | 10,0 | 6,0 | 450 | 585 |
| 720 | 426 | 10,0 | 6,0 | 10,0 | 6,0 | 10,0 | 6,0 | 10,0 | 6,0 | 10,0 | 6,0 | 10,0 | 6,0 | 500 | 585 |
| 720 | 530 | 10,0 | 6,0 | 10,0 | 6,0 | 10,0 | 6,0 | 10,0 | 6,0 | 10,0 | 7,0 | 10,0 | 5,0 | 585 | 585 |
| 720 | 630 | 10,0 | 6,0 | 10,0 | 6,0 | 10,0 | 6,0 | 10,0 | 6,0 | 10,0 | 9,0 | 10,0 | 7,0 | 680 | 560 |
| 720 | 720 | 10,0 | 10,0 | 10,0 | 10,0 | 10,0 | 10,0 | 750 | 580 | ||||||
| 820 | 325 | 10,0 | 8,0 | 10,0 | 8,0 | 10,0 | 8,0 | 10,0 | 8,0 | 10,0 | 8,0 | 8,0 | 8,0 | 405 | 630 |
| 820 | 377 | 10,0 | 8,0 | 10,0 | 8,0 | 10,0 | 8,0 | 10,0 | 8,0 | 10,0 | 8,0 | 8,0 | 8,0 | 450 | 630 |
| 820 | 426 | 10,0 | 8,0 | 10,0 | 8,0 | 10,0 | 8,0 | 10,0 | 8,0 | 11,0 | 8,0 | 9,0 | 8,0 | 500 | 630 |
| 820 | 530 | 10,0 | 8,0 | 10,0 | 8,0 | 10,0 | 8,0 | 10,0 | 8,0 | 11,0 | 8,0 | 9,0 | 8,0 | 585 | 650 |
| 820 | 630 | 10,0 | 8,0 | 10,0 | 8,0 | 10,0 | 8,0 | 10,0 | 8,0 | 11,0 | 9,0 | 9,0 | 8,0 | 475 | 630 |
| 820 | 720 | 10,0 | 8,0 | 10,0 | 8,0 | 10,0 | 8,0 | 10,0 | 8,0 | 11,0 | 10,0 | 9,0 | 8,0 | 750 | 630 |
| 820 | 820 | 10,0 | 10,0 | 10,0 | 10,0 | 11,0 | 9,0 | 855 | 670 | ||||||
| 1020 | 219 | 10,0 | 8,0 | 10,0 | 8,0 | 10,0 | 8,0 | 10,0 | 8,0 | 12,0 | 8,0 | 10,0 | 8,0 | 405 | 750 |
| 1020 | 325 | 10,0 | 8,0 | 10,0 | 8,0 | 10,0 | 8,0 | 10,0 | 8,0 | 12,0 | 8,0 | 10,0 | 8,0 | 405 | 750 |
| 1020 | 426 | 10,0 | 8,0 | 10,0 | 8,0 | 10,0 | 8,0 | 10,0 | 8,0 | 13,0 | 8,0 | 10,0 | 8,0 | 500 | 760 |
| 1020 | 530 | 10,0 | 8,0 | 10,0 | 8,0 | 10,0 | 8,0 | 10,0 | 8,0 | 13,0 | 8,0 | 10,0 | 8,0 | 585 | 765 |
| 1020 | 630 | 10,0 | 8,0 | 10,0 | 8,0 | 10,0 | 8,0 | 10,0 | 8,0 | 13,0 | 8,0 | 11,0 | 8,0 | 675 | 770 |
| 1020 | 720 | 10,0 | 8,0 | 10,0 | 8,0 | 10,0 | 8,0 | 10,0 | 8,0 | 14,0 | 9,0 | 11,0 | 8,0 | 750 | 770 |
| 1020 | 820 | 10,0 | 8,0 | 10,0 | 8,0 | 10,0 | 8,0 | 10,0 | 8,0 | 14,0 | 11,0 | 11,0 | 9,0 | 855 | 770 |
| 1020 | 1020 | 10,0 | 10,0 | 10,0 | 10,0 | 14,0 | 11,0 | 1030 | 850 | ||||||
| 1220 | 325 | 10,0 | 8,0 | 10,0 | 8,0 | 10,0 | 8,0 | 10,0 | 8,0 | 15,0 | 8,0 | 12,0 | 8,0 | 500 | 860 |
| 1220 | 426 | 10,0 | 8,0 | 10,0 | 8,0 | 10,0 | 8,0 | 10,0 | 8,0 | 15,0 | 8,0 | 12,0 | 8,0 | 500 | 860 |
| 1220 | 530 | 10,0 | 8,0 | 10,0 | 8,0 | 10,0 | 8,0 | 10,0 | 8,0 | 15,0 | 8,0 | 12,0 | 8,0 | 585 | 900 |
| 1220 | 630 | 10,0 | 8,0 | 10,0 | 8,0 | 10,0 | 8,0 | 10,0 | 8,0 | 15,0 | 8,0 | 12,0 | 8,0 | 675 | 900 |
| 1220 | 720 | 10,0 | 8,0 | 10,0 | 8,0 | 10,0 | 8,0 | 10,0 | 8,0 | 16,0 | 9,0 | 13,0 | 8,0 | 750 | 900 |
| 1220 | 820 | 10,0 | 8,0 | 10,0 | 8,0 | 10,0 | 8,0 | 10,0 | 8,0 | 16,0 | 10,0 | 13,0 | 9,0 | 855 | 900 |
| 1220 | 1020 | 10,0 | 8,0 | 10,0 | 8,0 | 11,0 | 8,0 | 10,0 | 8,0 | 16,0 | 12,0 | 13,0 | 10,0 | 1030 | 950 |
| 1220 | 1220 | 10,0 | 10,0 | 11,0 | 10,0 | 17,0 | 14,0 | 1220 | 1000 | ||||||
| 1420 | 325 | 10,0 | 8,0 | 10,0 | 8,0 | 10,0 | 8,0 | 10,0 | 8,0 | 16,0 | 8,0 | 13,0 | 8,0 | 405 | 950 |
| 1420 | 426 | 10,0 | 8,0 | 10,0 | 8,0 | 10,0 | 8,0 | 10,0 | 8,0 | 16,0 | 8,0 | 13,0 | 8,0 | 500 | 960 |
| 1420 | 530 | 10,0 | 8,0 | 10,0 | 8,0 | 11,0 | 8,0 | 10,0 | 8,0 | 16,0 | 8,0 | 13,0 | 8,0 | 585 | 1000 |
| 1420 | 630 | 10,0 | 8,0 | 10,0 | 8,0 | 11,0 | 8,0 | 10,0 | 8,0 | 17,0 | 8,0 | 13,0 | 8,0 | 675 | 1000 |
| 1420 | 720 | 10,0 | 8,0 | 10,0 | 8,0 | 11,0 | 8,0 | 10,0 | 8,0 | 17,0 | 9,0 | 14,0 | 8,0 | 750 | 1000 |
| 1420 | 820 | 10,0 | 8,0 | 10,0 | 8,0 | 11,0 | 9,0 | 10,0 | 8,0 | 17,0 | 10,0 | 14,0 | 8,0 | 855 | 1030 |
| 1420 | 1020 | 10,0 | 8,0 | 10,0 | 8,0 | 12,0 | 8,0 | 10,0 | 8,0 | 18,0 | 13,0 | 15,0 | 10,0 | 1030 | 1030 |
| 1420 | 1220 | 10,0 | 8,0 | 10,0 | 8,0 | 12,0 | 9,0 | 10,0 | 8,0 | 19,0 | 14,0 | 15,0 | 13,0 | 1220 | 1030 |
| Dн | dн | 5,6МПа | 6,4МПа | 7,5МПа | L | H | |||||||||
| m=0,6 | m=0,75 | m=0,6 | m=0,75 | m=0,6 | m=0,75 | ||||||||||
| мм | мм | S | S1 | S | S1 | S | S1 | S | S1 | S | S1 | S | S1 | мм | мм |
| 530 | 219 | 9,0 | 6,0 | 8,0 | 6,0 | 10,0 | 6,0 | 8,0 | 6,0 | 11,0 | 6,0 | 9,0 | 6,0 | 310 | 450 |
| 530 | 273 | 9,0 | 6,0 | 8,0 | 6,0 | 10,0 | 6,0 | 8,0 | 6,0 | 11,0 | 6,0 | 9,0 | 6,0 | 360 | 455 |
| 530 | 325 | 9,0 | 6,0 | 8,0 | 6,0 | 10,0 | 7,0 | 8,0 | 6,0 | 12,0 | 8,0 | 10,0 | 6,0 | 405 | 460 |
| 530 | 377 | 9,0 | 7,0 | 8,0 | 6,0 | 11,0 | 8,0 | 9,0 | 6,0 | 12,0 | 9,0 | 10,0 | 7,0 | 450 | 460 |
| 530 | 426 | 10,0 | 8,0 | 8,0 | 6,0 | 11,0 | 9,0 | 9,0 | 7,0 | 13,0 | 10,0 | 10,0 | 8,0 | 500 | 460 |
| 530 | 530 | 10,0 | 8,0 | 11,0 | 9,0 | 13,0 | 11,0 | 585 | 465 | ||||||
| 630 | 219 | 11,0 | 6,0 | 9,0 | 6,0 | 13,0 | 6,0 | 10,0 | 6,0 | 15,0 | 6,0 | 12,0 | 6,0 | 310 | 490 |
| 630 | 325 | 11,0 | 6,0 | 9,0 | 6,0 | 12,0 | 7,0 | 10,0 | 6,0 | 14,0 | 8,0 | 12,0 | 6,0 | 405 | 515 |
| 630 | 426 | 12,0 | 8,0 | 9,0 | 7,0 | 13,0 | 9,0 | 11,0 | 7,0 | 15,0 | 10,0 | 12,0 | 8,0 | 500 | 530 |
| 630 | 530 | 12,0 | 10,0 | 10,0 | 8,0 | 14,0 | 11,0 | 11,0 | 9,0 | 16,0 | 13,0 | 13,0 | 10,0 | 585 | 530 |
| 630 | 630 | 14,0 | 10,0 | 16,0 | 11,0 | 16,0 | 13,0 | 675 | 530 | ||||||
| 720 | 273 | 12,0 | 6,0 | 10,0 | 6,0 | 14,0 | 6,0 | 11,0 | 6,0 | 16,0 | 6,0 | 13,0 | 6,0 | 360 | 560 |
| 720 | 325 | 12,0 | 6,0 | 10,0 | 6,0 | 14,0 | 6,0 | 11,0 | 6,0 | 16,0 | 7,0 | 13,0 | 6,0 | 405 | 560 |
| 720 | 377 | 13,0 | 7,0 | 10,0 | 6,0 | 14,0 | 8,0 | 12,0 | 6,0 | 17,0 | 9,0 | 14,0 | 7,0 | 450 | 585 |
| 720 | 426 | 13,0 | 8,0 | 10,0 | 6,0 | 15,0 | 9,0 | 12,0 | 7,0 | 17,0 | 10,0 | 14,0 | 8,0 | 500 | 585 |
| 720 | 530 | 12,0 | 9,0 | 11,0 | 7,0 | 15,0 | 10,0 | 12,0 | 8,0 | 18,0 | 11,0 | 14,0 | 10,0 | 585 | 585 |
| 720 | 630 | 13,0 | 11,0 | 11,0 | 10,0 | 15,0 | 13,0 | 12,0 | 10,0 | 18,0 | 15,0 | 14,0 | 12,0 | 680 | 560 |
| 720 | 720 | 14,0 | 11,0 | 16,0 | 13,0 | 18,0 | 15,0 | 750 | 580 | ||||||
| 820 | 325 | 14,0 | 8,0 | 11,0 | 8,0 | 16,0 | 8,0 | 13,0 | 8,0 | 19,0 | 8,0 | 15,0 | 6,0 | 405 | 630 |
| 820 | 377 | 14,0 | 8,0 | 12,0 | 8,0 | 17,0 | 8,0 | 13,0 | 8,0 | 19,0 | 9,0 | 15,0 | 7,0 | 450 | 630 |
| 820 | 426 | 16,0 | 8,0 | 13,0 | 8,0 | 18,0 | 9,0 | 14,0 | 8,0 | 20,0 | 10,0 | 17,0 | 9,0 | 500 | 630 |
| 820 | 530 | 15,0 | 10,0 | 12,0 | 8,0 | 17,0 | 11,0 | 14,0 | 9,0 | 19,0 | 12,0 | 16,0 | 10,0 | 585 | 650 |
| 820 | 630 | 15,0 | 11,0 | 12,0 | 10,0 | 17,0 | 13,0 | 14,0 | 11,0 | 20,0 | 15,0 | 16,0 | 12,0 | 475 | 630 |
| 820 | 720 | 16,0 | 14,0 | 13,0 | 11,0 | 18,0 | 16,0 | 14,0 | 12,0 | 20,0 | 18,0 | 16,0 | 14,0 | 750 | 630 |
| 820 | 820 | 16,0 | 12,0 | 18,0 | 14,0 | 21,0 | 17,0 | 855 | 670 | ||||||
| 1020 | 219 | 17,0 | 8,0 | 14,0 | 8,0 | 19,0 | 8,0 | 16,0 | 8,0 | 22,0 | 8,0 | 18,0 | 8,0 | 405 | 750 |
| 1020 | 325 | 17,0 | 8,0 | 14,0 | 8,0 | 19,0 | 8,0 | 16,0 | 8,0 | 22,0 | 8,0 | 18,0 | 8,0 | 405 | 750 |
| 1020 | 426 | 17,0 | 8,0 | 14,0 | 8,0 | 20,0 | 8,0 | 16,0 | 6,0 | 23,0 | 8,0 | 19,0 | 8,0 | 500 | 760 |
| 1020 | 530 | 17,0 | 8,0 | 14,0 | 8,0 | 20,0 | 9,0 | 16,0 | 8,0 | 23,0 | 10,0 | 19,0 | 9,0 | 585 | 765 |
| 1020 | 630 | 18,0 | 11,0 | 15,0 | 9,0 | 20,0 | 12,0 | 17,0 | 10,0 | 24,0 | 14,0 | 19,0 | 12,0 | 675 | 770 |
| 1020 | 720 | 19,0 | 11,0 | 15,0 | 9,0 | 21,0 | 13,0 | 17,0 | 10,0 | 25,0 | 15,0 | 20,0 | 12,0 | 750 | 770 |
| 1020 | 820 | 19,0 | 15,0 | 16,0 | 12,0 | 22,0 | 17,0 | 18,0 | 14,0 | 25,0 | 20,0 | 21,0 | 16,0 | 855 | 770 |
| 1020 | 1020 | 20,0 | 16,0 | 22,0 | 18,0 | 26,0 | 21,0 | 1030 | 850 | ||||||
| 1220 | 325 | 21,0 | 8,0 | 17,0 | 8,0 | 24,0 | 8,0 | 19,0 | 8,0 | 28,0 | 8,0 | 23,0 | 8,0 | 500 | 860 |
| 1220 | 426 | 21,0 | 8,0 | 17,0 | 6,0 | 24,0 | 9,0 | 19,0 | 8,0 | 27,0 | 10,0 | 22,0 | 8,0 | 500 | 860 |
| 1220 | 530 | 21,0 | 9,0 | 17,0 | 8,0 | 24,0 | 11,0 | 19,0 | 9,0 | 28,0 | 12,0 | 22,0 | 10,0 | 585 | 900 |
| 1220 | 630 | 21,0 | 11,0 | 17,0 | 9,0 | 24,0 | 12,0 | 19,0 | 10,0 | 27,0 | 14,0 | 22,0 | 11,0 | 675 | 900 |
| 1220 | 720 | 21,0 | 12,0 | 17,0 | 10,0 | 24,0 | 14,0 | 20,0 | 11,0 | 28,0 | 16,0 | 23,0 | 13,0 | 750 | 900 |
| 1220 | 820 | 22,0 | 15,0 | 18,0 | 12,0 | 25,0 | 17,0 | 20,0 | 13,0 | 29,0 | 19,0 | 23,0 | 16,0 | 855 | 900 |
| 1220 | 1020 | 23,0 | 16,0 | 18,0 | 13,0 | 23,0 | 19,0 | 18,0 | 15,0 | 30,0 | 22,0 | 24,0 | 18,0 | 1030 | 950 |
| 1220 | 1220 | 23,0 | 19,0 | 26,0 | 21,0 | 31,0 | 25,0 | 1220 | 1000 | ||||||
| 1420 | 325 | 23,0 | 8,0 | 18,0 | 8,0 | 26,0 | 8,0 | 21,0 | 8,0 | 30,0 | 8,0 | 24,0 | 8,0 | 405 | 950 |
| 1420 | 426 | 22,0 | 8,0 | 18,0 | 8,0 | 26,0 | 8,0 | 21,0 | 8,0 | 30,0 | 9,0 | 24,0 | 8,0 | 500 | 960 |
| 1420 | 530 | 23,0 | 10,0 | 18,0 | 8,0 | 26,0 | 10,0 | 21,0 | 8,0 | 30,0 | 11,0 | 24,0 | 9,0 | 585 | 1000 |
| 1420 | 630 | 23,0 | 10,0 | 19,0 | 8,0 | 26,0 | 11,0 | 21,0 | 10,0 | 30,0 | 13,0 | 24,0 | 11,0 | 675 | 1000 |
| 1420 | 720 | 23,0 | 12,0 | 19,0 | 10,0 | 26,0 | 14,0 | 21,0 | 11,0 | 31,0 | 16,0 | 25,0 | 12,0 | 750 | 1000 |
| 1420 | 820 | 24,0 | 13,0 | 19,0 | 11,0 | 27,0 | 15,0 | 22,0 | 12,0 | 31,0 | 17,0 | 25,0 | 14,0 | 855 | 1030 |
| 1420 | 1020 | 25,0 | 18,0 | 20,0 | 14,0 | 28,0 | 20,0 | 23,0 | 16,0 | 33,0 | 23,0 | 27,0 | 29,0 | 1030 | 1030 |
| 1420 | 1220 | 26,0 | 19,0 | 21,0 | 17,0 | 27,0 | 22,0 | 23,0 | 20,0 | 34,0 | 26,0 | 27,0 | 23,0 | 1220 | 1030 |
| Dн | dн | 8,5МПа | 10МПа | 12,5МПа | L | H | |||||||||
| m=0,6 | m=0,75 | m=0,6 | m=0,75 | m=0,6 | m=0,75 | ||||||||||
| мм | мм | S | S1 | S | S1 | S | S1 | S | S1 | S | S1 | S | S1 | мм | мм |
| 530 | 219 | 13,0 | 6,0 | 10,0 | 6,0 | 15,0 | 6,0 | 12,0 | 6,0 | 18,0 | 8,0 | 15,0 | 6,0 | 310 | 450 |
| 530 | 273 | 13,0 | 7,0 | 10,0 | 6,0 | 15,0 | 8,0 | 12,0 | 6,0 | 18,0 | 10,0 | 15,0 | 8,0 | 360 | 455 |
| 530 | 325 | 14,0 | 8,0 | 11,0 | 7,0 | 16,0 | 10,0 | 13,0 | 8,0 | 19,0 | 12,0 | 15,0 | 10,0 | 405 | 460 |
| 530 | 377 | 14,0 | 10,0 | 11,0 | 8,0 | 16,0 | 12,0 | 13,0 | 9,0 | 20,0 | 14,0 | 16,0 | 11,0 | 450 | 460 |
| 530 | 426 | 14,0 | 12,0 | 12,0 | 9,0 | 17,0 | 13,0 | 14,0 | 11,0 | 20,0 | 16,0 | 16,0 | 13,0 | 500 | 460 |
| 530 | 530 | 15,0 | 12,0 | 17,0 | 14,0 | 21,0 | 17,0 | 585 | 465 | ||||||
| 630 | 219 | 17,0 | 6,0 | 13,0 | 6,0 | 19,0 | 7,0 | 16,0 | 6,0 | 24,0 | 8,0 | 19,0 | 7,0 | 310 | 490 |
| 630 | 325 | 16,0 | 9,0 | 13,0 | 7,0 | 19,0 | 10,0 | 15,0 | 8,0 | 23,0 | 12,0 | 19,0 | 10,0 | 405 | 515 |
| 630 | 426 | 17,0 | 11,0 | 14,0 | 10,0 | 20,0 | 13,0 | 16,0 | 11,0 | 24,0 | 16,0 | 20,0 | 13,0 | 500 | 530 |
| 630 | 530 | 18,0 | 15,0 | 14,0 | 12,0 | 21,0 | 17,0 | 17,0 | 14,0 | 25,0 | 21,0 | 21,0 | 17,0 | 585 | 530 |
| 630 | 630 | 18,0 | 15,0 | 21,0 | 17,0 | 26,0 | 21,0 | 675 | 530 | ||||||
| 720 | 273 | 18,0 | 7,0 | 15,0 | 6,0 | 21,0 | 8,0 | 17,0 | 7,0 | 25,0 | 10,0 | 21,0 | 8,0 | 360 | 560 |
| 720 | 325 | 18,0 | 8,0 | 15,0 | 7,0 | 21,0 | 10,0 | 17,0 | 8,0 | 26,0 | 10,0 | 21,0 | 9,0 | 405 | 560 |
| 720 | 377 | 19,0 | 10,0 | 15,0 | 8,0 | 22,0 | 11,0 | 18,0 | 10,0 | 27,0 | 14,0 | 22,0 | 11,0 | 450 | 585 |
| 720 | 426 | 19,0 | 11,0 | 15,0 | 9,0 | 22,0 | 13,0 | 18,0 | 10,0 | 27,0 | 16,0 | 22,0 | 13,0 | 500 | 585 |
| 720 | 530 | 20,0 | 13,0 | 16,0 | 10,0 | 23,0 | 15,0 | 19,0 | 12,0 | 28,0 | 19,0 | 23,0 | 15,0 | 585 | 585 |
| 720 | 630 | 20,0 | 17,0 | 16,0 | 14,0 | 23,0 | 20,0 | 19,0 | 16,0 | 28,0 | 24,0 | 23,0 | 20,0 | 680 | 560 |
| 720 | 720 | 21,0 | 17,0 | 24,0 | 19,0 | 29,0 | 24,0 | 750 | 580 | ||||||
| 820 | 325 | 21,0 | 9,0 | 17,0 | 7,0 | 24,0 | 10,0 | 20,0 | 8,0 | 30,0 | 12,0 | 24,0 | 10,0 | 405 | 630 |
| 820 | 377 | 21,0 | 10,0 | 17,0 | 8,0 | 25,0 | 11,0 | 20,0 | 9,0 | 30,0 | 14,0 | 25,0 | 11,0 | 450 | 630 |
| 820 | 426 | 23,0 | 12,0 | 19,0 | 10,0 | 27,0 | 14,0 | 22,0 | 11,0 | 33,0 | 17,0 | 27,0 | 14,0 | 500 | 630 |
| 820 | 530 | 22,0 | 14,0 | 18,0 | 11,0 | 25,0 | 16,0 | 21,0 | 13,0 | 31,0 | 20,0 | 25,0 | 16,0 | 585 | 650 |
| 820 | 630 | 23,0 | 17,0 | 18,0 | 14,0 | 26,0 | 20,0 | 21,0 | 16,0 | 32,0 | 25,0 | 26,0 | 20,0 | 475 | 630 |
| 820 | 720 | 23,0 | 20,0 | 19,0 | 16,0 | 27,0 | 24,0 | 22,0 | 19,0 | 32,0 | 29,0 | 27,0 | 23,0 | 750 | 630 |
| 820 | 820 | 23,0 | 19,0 | 27,0 | 22,0 | 33,0 | 28,0 | 855 | 670 | ||||||
| 1020 | 219 | 25,0 | 8,0 | 20,0 | 8,0 | 29,0 | 8,0 | 24,0 | 8,0 | 36,0 | 8,0 | 29,0 | 8,0 | 405 | 750 |
| 1020 | 325 | 25,0 | 8,0 | 20,0 | 8,0 | 29,0 | 9,0 | 24,0 | 8,0 | 36,0 | 10,0 | 29,0 | 9,0 | 405 | 750 |
| 1020 | 426 | 26,0 | 9,0 | 21,0 | 8,0 | 30,0 | 10,0 | 24,0 | 9,0 | 37,0 | 15,0 | 30,0 | 12,0 | 500 | 760 |
| 1020 | 530 | 26,0 | 12,0 | 21,0 | 10,0 | 30,0 | 14,0 | 24,0 | 11,0 | 37,0 | 17,0 | 30,0 | 14,0 | 585 | 765 |
| 1020 | 630 | 27,0 | 16,0 | 22,0 | 13,0 | 31,0 | 19,0 | 25,0 | 15,0 | 38,0 | 23,0 | 31,0 | 19,0 | 675 | 770 |
| 1020 | 720 | 28,0 | 17,0 | 22,0 | 14,0 | 32,0 | 20,0 | 26,0 | 16,0 | 39,0 | 24,0 | 32,0 | 20,0 | 750 | 770 |
| 1020 | 820 | 28,0 | 22,0 | 23,0 | 19,0 | 33,0 | 26,0 | 27,0 | 22,0 | 40,0 | 32,0 | 34,0 | 27,0 | 855 | 770 |
| 1020 | 1020 | 29,0 | 23,0 | 34,0 | 27,0 | 41,0 | 34,0 | 1030 | 850 | ||||||
| 1220 | 325 | 31,0 | 8,0 | 25,0 | 8,0 | 500 | 860 | ||||||||
| 1220 | 426 | 31,0 | 11,0 | 25,0 | 9,0 | 500 | 860 | ||||||||
| 1220 | 530 | 31,0 | 13,0 | 25,0 | 11,0 | 585 | 900 | ||||||||
| 1220 | 630 | 31,0 | 16,0 | 25,0 | 13,0 | 675 | 900 | ||||||||
| 1220 | 720 | 32,0 | 19,0 | 26,0 | 15,0 | 750 | 900 | ||||||||
| 1220 | 820 | 33,0 | 22,0 | 26,0 | 17,0 | 855 | 900 | ||||||||
| 1220 | 1020 | 33,0 | 24,0 | 27,0 | 20,0 | 1030 | 950 | ||||||||
| 1220 | 1220 | 34,0 | 28,0 | 1220 | 1000 | ||||||||||
| 1420 | 325 | 33,0 | 8,0 | 27,0 | 8,0 | 405 | 950 | ||||||||
| 1420 | 426 | 33,0 | 10,0 | 27,0 | 8,0 | 500 | 960 | ||||||||
| 1420 | 530 | 34,0 | 13,0 | 27,0 | 10,0 | 585 | 1000 | ||||||||
| 1420 | 630 | 34,0 | 15,0 | 28,0 | 12,0 | 675 | 1000 | ||||||||
| 1420 | 720 | 34,0 | 19,0 | 28,0 | 14,0 | 750 | 1000 | ||||||||
| 1420 | 820 | 35,0 | 19,0 | 29,0 | 16,0 | 855 | 1030 | ||||||||
| 1420 | 1020 | 37,0 | 26,0 | 30,0 | 21,0 | 1030 | 1030 | ||||||||
| 1420 | 1220 | 38,0 | 29,0 | 31,0 | 26,0 | 1220 | 1030 | ||||||||
Пример условного обозначения тройника сварного с усиливающими накладками переходного с Dн=720мм, dн=426мм, S=12мм, S1=8мм, Рраб=4,0 МПа, коэффициентом условий работы m=0,6 для макроклиматических районов с холодным климатом (сталь 09Г2С):
Тройник ТСН 720х12К48-426х8-4,0-0,6-УХЛ ТУ 1469-002-42039714-2004
То же, тройника равнопроходного с Dн=720мм, S=12мм:
Тройник ТСН 720х12К48-4,0-0,6-УХЛ ТУ 1469-002-42039714-2004
Примечание: По требованию заказчика возможно изготовление тройников других типоразмеров и из других марок стали, а так же тройников с решётками по конструкторской документации заказчика или изготовителя, согласованной с заказчиком.Доставка продукции осуществляется автотранспортом, железнодорожным транспортом, авиатранспортом, а также транспортом компании «ЭнергоПромТехСтрой» до места нахождения заказчика.
© 2009 – 2024г. ООО «ЭнергоПромТехСтрой» | тел.: +7(831)439-64-86, 439-64-40, 439-64-12, факс: +7 (831) 439-64-86
Создание сайта — Reset
