Тройник ТУ 1469-001-34929762-2004

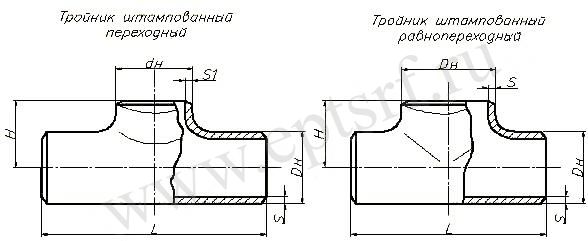

Тройники штампованные переходные и равнопроходные ТУ 1469-001-34929762-2004 из углеродистой, низколегированной и коррозионностойкой сталей, на условной давление до 63 МПа, с условными диаметрами до 500 мм и температурой стенки от минус 70 до плюс 2000С, предназначенные для соединения труб технологических и магистральных трубопроводов газа, жидких нефтепродуктов, пара и воды.
Минимальные номинальные значения толщин стенок, ст.09Г2С
| Dн-dн | 10МПа | 12,5МПа | 16МПа | 20МПа | 25МПа | 32МПа | 40МПа | |||||||
| мм | Smin | S1min | Smin | S1min | Smin | S1min | Smin | S1min | Smin | S1min | Smin | S1min | Smin | S1min |
| 45х25 | 2,5 | 2,0 | 2,5 | 2,0 | 2,5 | 2,0 | 2,5 | 2,0 | 3,5 | 2,0 | 4,0 | 2,5 | 5,0 | 3,0 |
| 45х32 | 2,5 | 2,0 | 2,5 | 2,0 | 2,5 | 2,0 | 2,5 | 2,0 | 3,5 | 2,5 | 4,0 | 3,0 | 5,0 | 3,5 |
| 45х38 | 2,5 | 2,0 | 2,5 | 2,0 | 2,5 | 2,0 | 2,5 | 2,0 | 3,5 | 3,0 | 4,0 | 3,5 | 5,0 | 4,0 |
| 45х45 | 2,5 | 2,5 | 2,5 | 2,5 | 3,5 | 4,0 | 5,0 | |||||||
| 57х25 | 3,0 | 2,0 | 3,0 | 2,0 | 3,0 | 2,0 | 3,0 | 2,0 | 5,0 | 2,0 | 5,0 | 2,5 | 6,0 | 3,0 |
| 57х32 | 3,0 | 2,0 | 3,0 | 2,0 | 3,0 | 2,0 | 3,0 | 2,5 | 5,0 | 2,5 | 5,0 | 3,0 | 6,0 | 3,5 |
| 57х38 | 3,0 | 2,0 | 3,0 | 2,0 | 3,0 | 2,0 | 3,0 | 3,0 | 5,0 | 3,0 | 5,0 | 3,5 | 6,0 | 4,0 |
| 57х45 | 3,0 | 2,0 | 3,0 | 2,0 | 3,0 | 2,5 | 3,0 | 3,5 | 5,0 | 3,5 | 5,0 | 4,0 | 6,0 | 5,0 |
| 57х57 | 3,0 | 3,0 | 3,0 | 3,0 | 5,0 | 5,0 | ||||||||
| 76х45 | 3,5 | 2,5 | 3,0 | 2,5 | 4,0 | 2,5 | 4,0 | 2,5 | 6,0 | 3,5 | 7,0 | 4,0 | 8,0 | 5,0 |
| 76х57 | 2,5 | 2,5 | 3,0 | 2,5 | 4,0 | 3,0 | 4,0 | 3,0 | 6,0 | 5,0 | ||||
| 76х76 | 2,5 | 3,0 | 4,0 | 4,0 | 4,0 | 6,0 | ||||||||
| 89х57 | 4,0 | 2,5 | 4,0 | 2,5 | 4,5 | 3,0 | 5,0 | 3,0 | 7,0 | 4,5 | ||||
| 89х76 | 4,0 | 2,5 | 4,0 | 3,0 | 4,5 | 4,0 | 5,0 | 4,0 | 7,0 | 6,0 | ||||
| 89х89 | 4,0 | 4,0 | 4,5 | 5,0 | 7,0 | 8,0 | ||||||||
| 108х57 | 4,5 | 3,0 | 4,5 | 3,0 | 6,0 | 3,0 | 6,0 | 3,0 | 8,0 | 4,5 | ||||
| 108х76 | 4,5 | 3,0 | 4,5 | 3,0 | 6,0 | 4,0 | 6,0 | 4,0 | 8,0 | 6,0 | ||||
| 108х89 | 4,5 | 3,0 | 4,5 | 3,0 | 6,0 | 4,5 | 6,0 | 5,0 | 8,0 | 7,0 | 10,0 | 8,0 | 12,0 | 10,0 |
| 108х108 | 4,5 | 4,5 | 6,0 | 6,0 | 8,0 | 10,0 | 12,0 | |||||||
| 114х57 | 4,5 | 3,0 | 5,0 | 3,0 | 6,0 | 3,0 | 6,0 | 3,0 | 8,0 | 4,5 | ||||
| 114х76 | 4,5 | 3,0 | 5,0 | 3,0 | 6,0 | 4,0 | 6,0 | 4,0 | 8,0 | 6,0 | ||||
| 114х89 | 4,5 | 3,0 | 5,0 | 3,5 | 6,0 | 4,5 | 6,0 | 5,0 | 8,0 | 7,0 | 10,0 | 8,0 | 12,0 | 10,0 |
| 114х108 | 4,5 | 3,0 | 5,0 | 4,0 | 6,0 | 6,0 | 6,0 | 6,0 | 8,0 | 8,0 | 10,0 | 10,0 | 12,0 | 12,0 |
| 114х114 | 4,5 | 5,0 | 6,0 | 6,0 | 8,0 | 10,0 | 12,0 | |||||||
| 133х57 | 6,0 | 3,5 | 6,0 | 3,5 | 7,0 | 3,5 | 7,0 | 3,5 | 10,0 | 4,5 | ||||
| 133х76 | 6,0 | 3,5 | 6,0 | 3,5 | 7,0 | 4,0 | 7,0 | 4,0 | ||||||
| 133х89 | 6,0 | 3,5 | 6,0 | 3,5 | 7,0 | 4,5 | 7,0 | 5,0 | 10,0 | 7,0 | 12,0 | 8,0 | 14,0 | 10,0 |
| 133х108 | 6,0 | 3,5 | 6,0 | 3,5 | 7,0 | 6,0 | 7,0 | 6,0 | 10,0 | 8,0 | 12,0 | 10,0 | 14,0 | 12,0 |
| 133х114 | 6,0 | 3,5 | 6,0 | 5,0 | 7,0 | 6,0 | 7,0 | 6,0 | 10,0 | 8,0 | 12,0 | 10,0 | 14,0 | 12,0 |
| 133х133 | 6,0 | 6,0 | 7,0 | 7,0 | 10,0 | 12,0 | 14,0 | |||||||
| 159х57 | 6,0 | 3,5 | 6,0 | 3,5 | 8,0 | 3,5 | 9,0 | 3,5 | 12,0 | 4,5 | ||||
| 159х76 | 6,0 | 3,5 | 6,0 | 3,5 | 8,0 | 4,0 | 9,0 | 4,0 | ||||||
| 159х89 | 6,0 | 3,5 | 6,0 | 3,5 | 8,0 | 4,5 | 9,0 | 5,0 | 12,0 | 7,0 | 14,0 | 8,0 | 17,0 | 10,0 |
| 159х108 | 6,0 | 3,5 | 6,0 | 4,0 | 8,0 | 6,0 | 9,0 | 6,0 | 12,0 | 8,0 | 14,0 | 10,0 | 17,0 | 12,0 |
| 159х114 | 6,0 | 3,5 | 6,0 | 5,0 | 8,0 | 6,0 | 9,0 | 6,0 | 12,0 | 8,0 | 14,0 | 10,0 | 17,0 | 12,0 |
| 159х133 | 6,0 | 4,0 | 6,0 | 5,0 | 8,0 | 7,0 | 9,0 | 7,0 | 12,0 | 10,0 | 14,0 | 12,0 | 17,0 | 14,0 |
| 159х159 | 6,0 | 6,0 | 8,0 | 9,0 | 12,0 | 14,0 | 17,0 | |||||||
| 168х57 | 6,0 | 4,0 | 7,0 | 4,0 | 8,0 | 4,0 | 9,0 | 4,0 | 12,0 | 4,5 | ||||
| 168х76 | 6,0 | 4,0 | 7,0 | 4,0 | 8,0 | 4,0 | 9,0 | 4,0 | ||||||
| 168х89 | 6,0 | 4,0 | 7,0 | 4,0 | 8,0 | 4,5 | 9,0 | 5,0 | 12,0 | 7,0 | 15,0 | 8,0 | 18,0 | 10,0 |
| 168х108 | 6,0 | 4,0 | 7,0 | 4,0 | 8,0 | 6,0 | 9,0 | 6,0 | 12,0 | 8,0 | 15,0 | 10,0 | 18,0 | 12,0 |
| 168х114 | 6,0 | 4,0 | 7,0 | 5,0 | 8,0 | 6,0 | 9,0 | 6,0 | 12,0 | 8,0 | 15,0 | 10,0 | 18,0 | 12,0 |
| 168х133 | 6,0 | 4,0 | 7,0 | 5,0 | 8,0 | 7,0 | 9,0 | 7,0 | 12,0 | 10,0 | 15,0 | 10,0 | 18,0 | 12,0 |
| 168х159 | 6,0 | 5,0 | 7,0 | 6,0 | 8,0 | 8,0 | 9,0 | 9,0 | 12,0 | 12,0 | 15,0 | 12,0 | 18,0 | 14,0 |
| 168х168 | 6,0 | 7,0 | 8,0 | 9,0 | 12,0 | 15,0 | 18,0 | |||||||
| 219х57 | 7,0 | 4,0 | 9,0 | 4,0 | 11,0 | 4,0 | 12,0 | 4,0 | ||||||
| 219х76 | 7,0 | 4,0 | 9,0 | 4,0 | 11,0 | 4,0 | 12,0 | 4,0 | ||||||
| 219х89 | 7,0 | 4,0 | 9,0 | 4,0 | 11,0 | 4,5 | 12,0 | 5,0 | 16,0 | 7,0 | 20,0 | 8,0 | 23,0 | 10,0 |
| 219х108 | 7,0 | 4,0 | 9,0 | 4,0 | 11,0 | 6,0 | 12,0 | 6,0 | 16,0 | 8,0 | 20,0 | 10,0 | 23,0 | 12,0 |
| 219х114 | 7,0 | 4,0 | 9,0 | 5,0 | 11,0 | 6,0 | 12,0 | 6,0 | 16,0 | 8,0 | 20,0 | 10,0 | 23,0 | 12,0 |
| 219х133 | 7,0 | 4,0 | 9,0 | 5,0 | 11,0 | 7,0 | 12,0 | 7,0 | 16,0 | 10,0 | 20,0 | 12,0 | 23,0 | 14,0 |
| 219х159 | 7,0 | 5,0 | 9,0 | 6,0 | 11,0 | 8,0 | 12,0 | 9,0 | 16,0 | 12,0 | 20,0 | 14,0 | 23,0 | 17,0 |
| 219х168 | 7,0 | 6,0 | 9,0 | 7,0 | 11,0 | 8,0 | 12,0 | 9,0 | 16,0 | 12,0 | 20,0 | 15,0 | 23,0 | 18,0 |
| 219х219 | 7,0 | 9,0 | 11,0 | 12,0 | 16,0 | 20,0 | 23,0 | |||||||
| 273х57 | 9,0 | 4,0 | 11,0 | 4,0 | 13,0 | 4,0 | 14,0 | 4,0 | ||||||
| 273х76 | 9,0 | 4,0 | 11,0 | 4,0 | 13,0 | 4,0 | 14,0 | 4,0 | ||||||
| 273х89 | 9,0 | 4,0 | 11,0 | 4,0 | 13,0 | 4,5 | 14,0 | 5,0 | 20,0 | 7,0 | 24,0 | 8,0 | ||
| 273х108 | 9,0 | 4,0 | 11,0 | 4,0 | 13,0 | 6,0 | 14,0 | 6,0 | 20,0 | 8,0 | 24,0 | 10,0 | ||
| 273х114 | 9,0 | 4,0 | 11,0 | 5,0 | 13,0 | 6,0 | 14,0 | 6,0 | 20,0 | 8,0 | 24,0 | 10,0 | ||
| 273х133 | 9,0 | 4,0 | 11,0 | 5,0 | 13,0 | 7,0 | 14,0 | 7,0 | 20,0 | 10,0 | 24,0 | 12,0 | ||
| 273х159 | 9,0 | 5,0 | 11,0 | 6,0 | 13,0 | 8,0 | 14,0 | 9,0 | 20,0 | 12,0 | 24,0 | 14,0 | ||
| 273х168 | 9,0 | 6,0 | 11,0 | 7,0 | 13,0 | 8,0 | 14,0 | 9,0 | 20,0 | 12,0 | 24,0 | 15,0 | ||
| 273х219 | 9,0 | 7,0 | 11,0 | 9,0 | 13,0 | 11,0 | 14,0 | 12,0 | 20,0 | 16,0 | 24,0 | 20,0 | ||
| 273х273 | 9,0 | 11,0 | 13,0 | 14,0 | 20,0 | 24,0 | ||||||||
| 325х57 | 10,0 | 4,0 | 13,0 | 4,0 | 16,0 | 4,0 | 17,0 | 4,0 | ||||||
| 325х76 | 10,0 | 4,0 | 13,0 | 4,0 | 16,0 | 4,0 | 17,0 | 4,0 | ||||||
| 325х89 | 10,0 | 4,0 | 13,0 | 4,0 | 16,0 | 4,5 | 17,0 | 5,0 | 23,0 | 7,0 | ||||
| 325х108 | 10,0 | 4,0 | 13,0 | 4,0 | 16,0 | 6,0 | 17,0 | 6,0 | 23,0 | 8,0 | ||||
| 325х114 | 10,0 | 4,0 | 13,0 | 5,0 | 16,0 | 6,0 | 17,0 | 6,0 | 23,0 | 8,0 | ||||
| 325х133 | 10,0 | 4,0 | 13,0 | 5,0 | 16,0 | 7,0 | 17,0 | 7,0 | 23,0 | 10,0 | ||||
| 325х159 | 10,0 | 5,0 | 13,0 | 6,0 | 16,0 | 8,0 | 17,0 | 9,0 | 23,0 | 12,0 | ||||
| 325х168 | 10,0 | 6,0 | 13,0 | 7,0 | 16,0 | 8,0 | 17,0 | 9,0 | 23,0 | 12,0 | ||||
| 325х219 | 10,0 | 7,0 | 13,0 | 9,0 | 16,0 | 11,0 | 17,0 | 12,0 | 23,0 | 16,0 | ||||
| 325х273 | 10,0 | 9,0 | 13,0 | 11,0 | 16,0 | 13,0 | 17,0 | 14,0 | 23,0 | 20,0 | ||||
| 325х325 | 10,0 | 13,0 | 16,0 | 17,0 | 23,0 | |||||||||
| 377х89 | 12,0 | 4,0 | 15,0 | 4,0 | 18,0 | 4,5 | 20,0 | 5,0 | 27,0 | 7,0 | ||||
| 377х108 | 12,0 | 4,0 | 15,0 | 4,0 | 18,0 | 6,0 | 20,0 | 6,0 | 27,0 | 8,0 | ||||
| 377х114 | 12,0 | 4,0 | 15,0 | 5,0 | 18,0 | 6,0 | 20,0 | 6,0 | 27,0 | 8,0 | ||||
| 377х133 | 12,0 | 4,0 | 15,0 | 5,0 | 18,0 | 7,0 | 20,0 | 7,0 | 27,0 | 10,0 | ||||
| 377х157 | 12,0 | 5,0 | 15,0 | 6,0 | 18,0 | 8,0 | 20,0 | 9,0 | 27,0 | 12,0 | ||||
| 377х168 | 12,0 | 6,0 | 15,0 | 7,0 | 18,0 | 8,0 | 20,0 | 9,0 | 27,0 | 12,0 | ||||
| 377х219 | 12,0 | 7,0 | 15,0 | 9,0 | 18,0 | 11,0 | 20,0 | 12,0 | 27,0 | 16,0 | ||||
| 377х273 | 12,0 | 9,0 | 15,0 | 11,0 | 18,0 | 13,0 | 20,0 | 14,0 | 27,0 | 20,0 | ||||
| 377х325 | 12,0 | 10,0 | 15,0 | 13,0 | 18,0 | 16,0 | 20,0 | 17,0 | 27,0 | 23,0 | ||||
| 377х377 | 12,0 | 15,0 | 18,0 | 20,0 | 27,0 | |||||||||
| 426х108 | 13,0 | 4,0 | 16,0 | 4,0 | 21,0 | 6,0 | 22,0 | 6,0 | 31,0 | 8,0 | ||||
| 426х114 | 13,0 | 4,0 | 16,0 | 5,0 | 21,0 | 6,0 | 22,0 | 6,0 | 31,0 | 8,0 | ||||
| 426х133 | 13,0 | 4,0 | 16,0 | 5,0 | 21,0 | 7,0 | 22,0 | 7,0 | 31,0 | 10,0 | ||||
| 426х159 | 13,0 | 5,0 | 16,0 | 6,0 | 21,0 | 8,0 | 22,0 | 9,0 | 31,0 | 12,0 | ||||
| 426х168 | 13,0 | 6,0 | 16,0 | 7,0 | 21,0 | 8,0 | 22,0 | 9,0 | 31,0 | 12,0 | ||||
| 426х219 | 13,0 | 7,0 | 16,0 | 9,0 | 21,0 | 11,0 | 22,0 | 12,0 | 31,0 | 16,0 | ||||
| 426х273 | 13,0 | 9,0 | 16,0 | 11,0 | 21,0 | 13,0 | 22,0 | 14,0 | 31,0 | 20,0 | ||||
| 426х325 | 13,0 | 10,0 | 16,0 | 13,0 | 21,0 | 16,0 | 22,0 | 17,0 | 31,0 | 23,0 | ||||
| 426х377 | 13,0 | 12,0 | 16,0 | 15,0 | 21,0 | 18,0 | 22,0 | 22,0 | 31,0 | 27,0 | ||||
| 426х426 | 13,0 | 16,0 | 21,0 | 22,0 | 31,0 | |||||||||
Пример условного обозначения тройника 159х8-57х4 на давление 12,5 МПа из стали 09Г2С, изготовленного по ТУ 1469-001-34929762-2004:
Тройник 159х8-57х4-12,5-09Г2С ТУ 1469-001-34929762-2004
Примечание: По требованию заказчика возможно изготовление тройников других типоразмеров и из других марок стали.Доставка продукции осуществляется автотранспортом, железнодорожным транспортом, авиатранспортом, а также транспортом компании «ЭнергоПромТехСтрой» до места нахождения заказчика.
