Переход концентрический ТУ 1468-002-17192736-2003

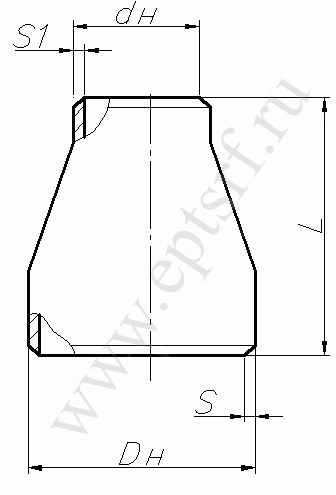

Переходы концентрические ТУ 1468-002-17192736-03. Внешний вид.

Габаритные размеры и основные параметры сварных секторных отводов
Типоразмер Типоразмер
D н x d н, диаметр, мм S x S 1 , толщина стенки, мм D н x d н, диаметр, мм S x S 1 , толщина стенки, мм
сталь 12Х18Н10Т, 08Х18Н10Т, 10Х17Н13М2Т
45 x 25 4,0 x 3,0 159 x 108 6,0 x 4,0
45 x 32 4,0 x 4,0 8,0 x 6,0
57 x 32 5,0 x 3,0 159 x 133 6,0 x 5,0
57 x 38 5,0 x 4,0 8,0 x 6,0
57 x 45 4,0 x 4,0 219 x 108 8,0 x 6,0
5,0 x 4,0 10,0 x 6,0
76 x 57 6,0 x 5,0 219 x 159 8,0 x 6,0
89 x 57 4,0 x 3,0 10,0 x 8,0
6,0 x 5,0 273 x 159 10,0 x 6,0
89 x 76 4,0 x 3,0 12,0 x 10,0
6,0 x 5,0 273 x 219 10,0 x 8,0
108 x 57 4,0 x 3,0 12,0 x 10,0
6,0 x 5,0 325 x 219 10,0 x 8,0
108 x 76 4,0 x 4,0 12,0 x 10,0
6,0 x 5,0 325 x 273 10,0 x 10,0
108 x 89 4,0 x 4,0 12,0 x 12,0
6,0 x 6,0 377 x 273 12,0 x 10,0
133 x 108 5,0 x 4,0 377 x 325 12,0 x 10,0
8,0 x 6,0 426 x 325 10,0 x 8,0
159 x 89 6,0 x 4,0 12,0 x 10,0
8,0 x 6,0 426 x 377 12,0 x 12,0
сталь 15Х5М
57 x 32(38,45) 5,0 x 3,0 219 x 159 12,0 x 10,0
89 x 57(76) 6,0 x 5,0 273 x 159 10,0 x 8,0
108 x 57 6,0 x 5,0 12,0 x 10,0
108 x 76 6,0 x 5,0 273 x 219 12,0 x 10,0
108 x 89 6,0 x 6,0 325 x 219 12,0 x 10,0
159 x 89 6,0 x 4,0 325 x 273 12,0 x 12,0
8,0 x 6,0 377 x 325 12,0 x 12,0
159 x 108 10,0 x 8,0 426 x 325 12,0 x 12,0
219 x 108 10,0 x 8,0 426 x 377 12,0 x 12,0
